TERMINALS AND CONNECTORS

Transformer Components manufactures a complete line of terminals and connectors for your transformer component needs.

Go back
Ground Lug

Ground Lugs

Flat Spade

Flat Spades

Straight Connector

Straight Connector

Z-Bar Connector

Zbar Connector

Ground Lug

Ground Lugs

ECI is pleased to announce the addition of our new 1.2 kV Class, 30 kV BIL polemount low voltage bushing. Specifically designed metal castings in conjunction with a thermoset body which incorporates a recessed gasket provides superior strength, high temperature resistance and controlled gasket compression.

LVPB 1.2KV (10/50KVA)
LVPB 1.2KV (75/100KVA)
Test Report for LV Polemount Bushings
Flat Spade

Flat Spades

  • Corrosion Resistance: Tin-plated finish ensures long-term durability by resisting corrosion.
  • High-Quality Alloy: Manufactured from a high copper content alloy, offering excellent
    conductivity and strength.
  • Premium Materials: Composed of C377 for superior performance since this material is
    Cast forged rather than sand cast, providing superior conductivity with less porosity.
  • Threaded Support: Equipped with threaded support holes on both the top and side for
    versatile mounting options.
  • Standardized Lug Mounting: Spade Terminal Connector features 9/16” diameter lug
    mounting holes with 1-3/4” NEMA standard spacing for easy installation.

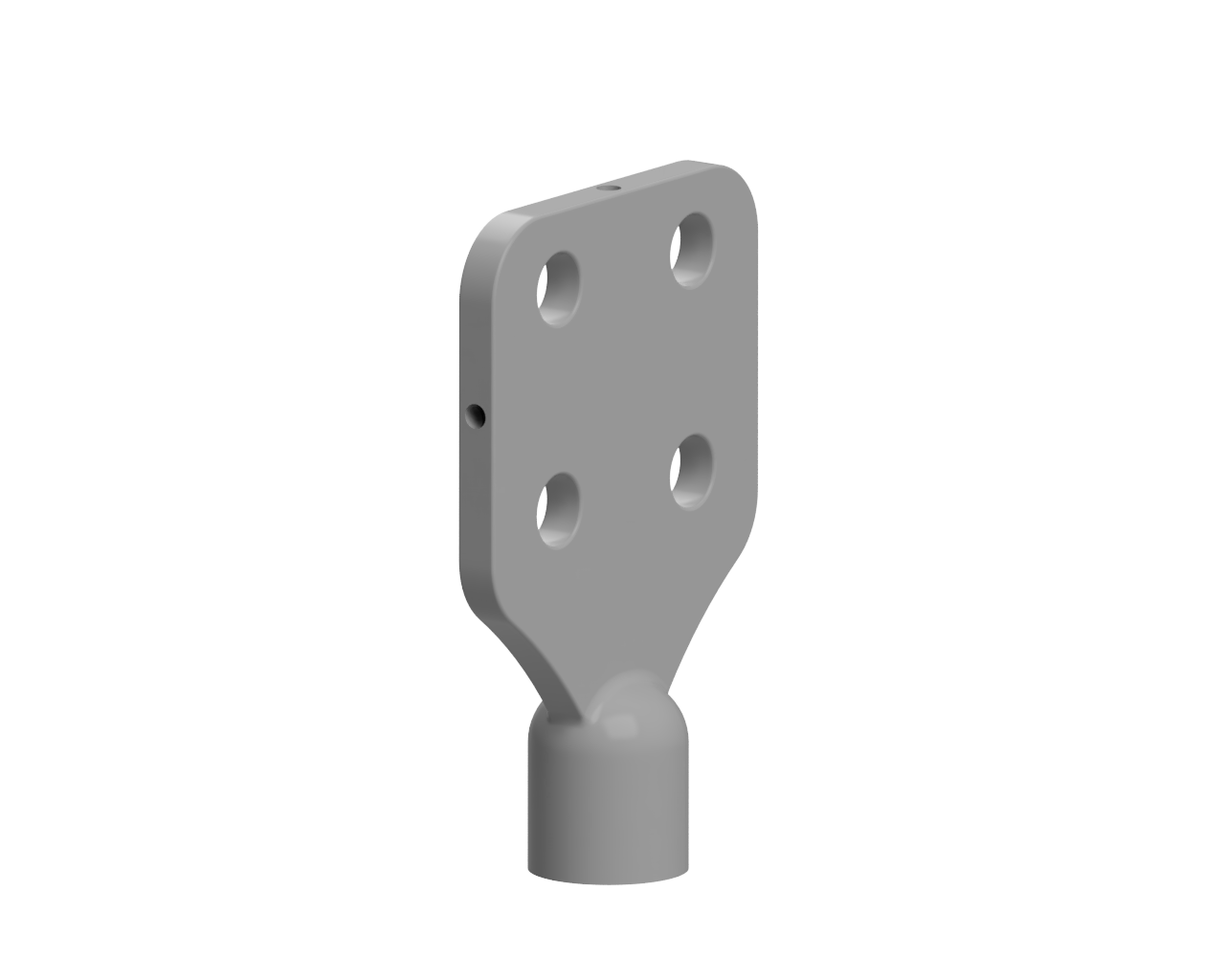

4 hole spade: 2A096100P02

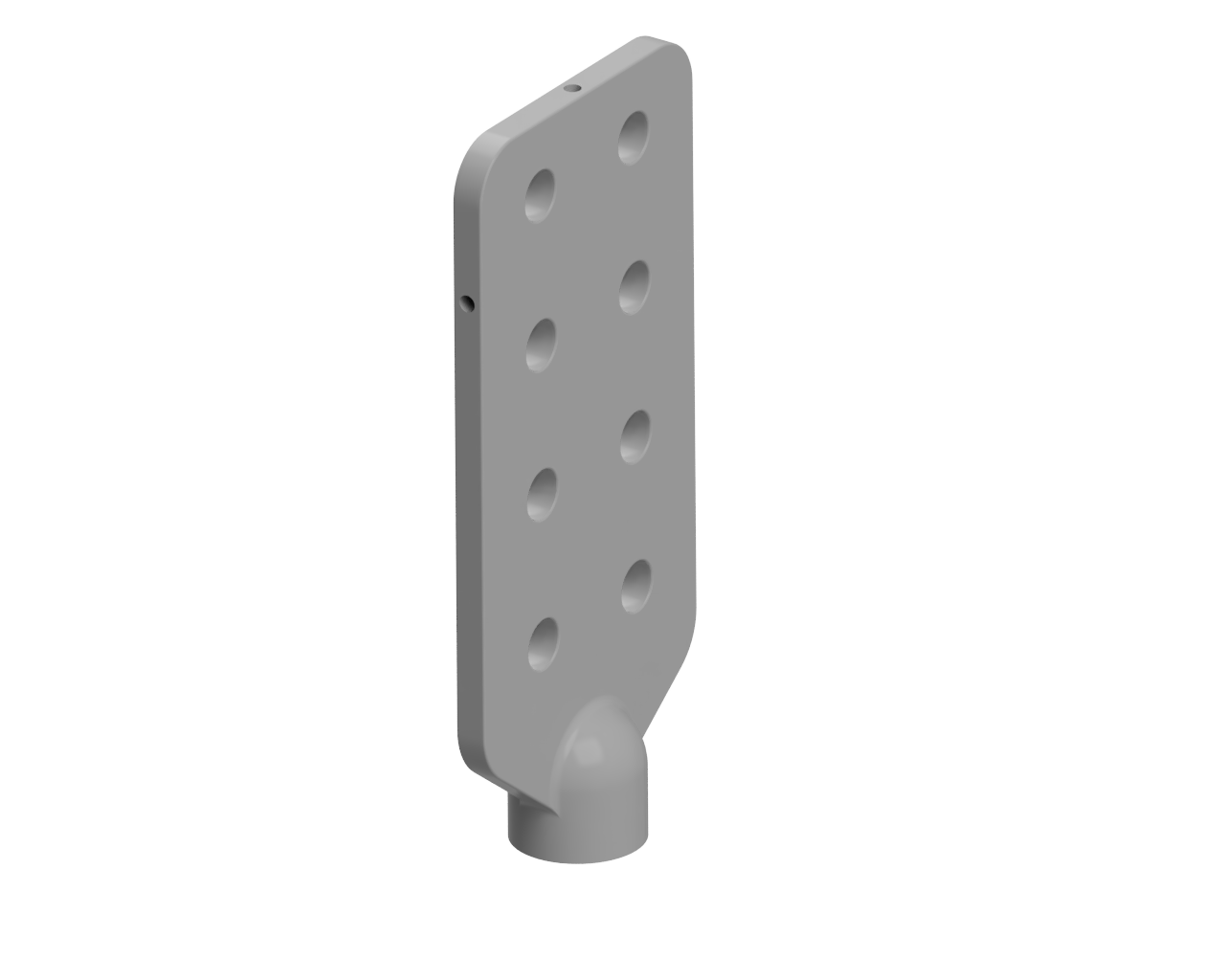

8 hole spade: 2A096102P01

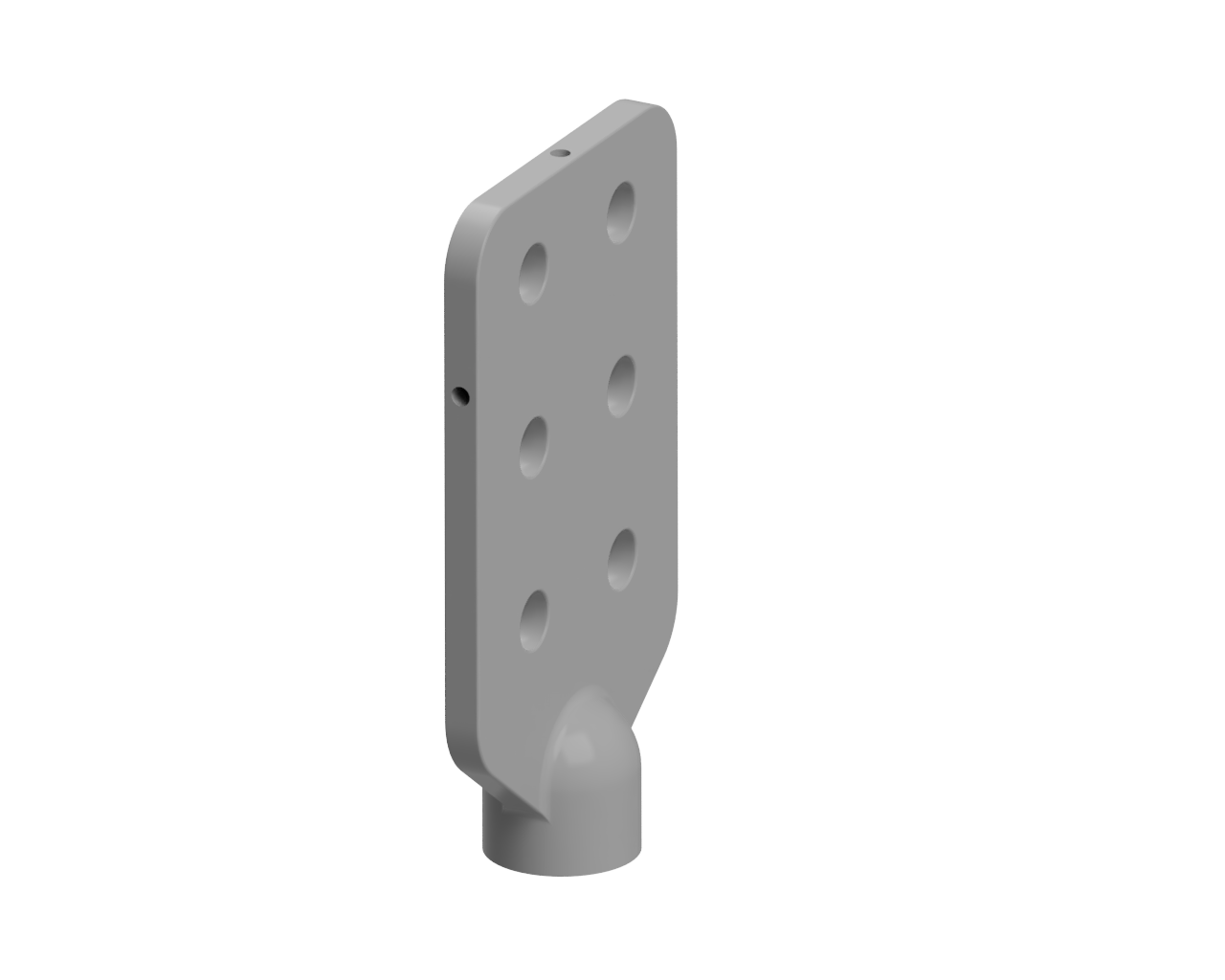

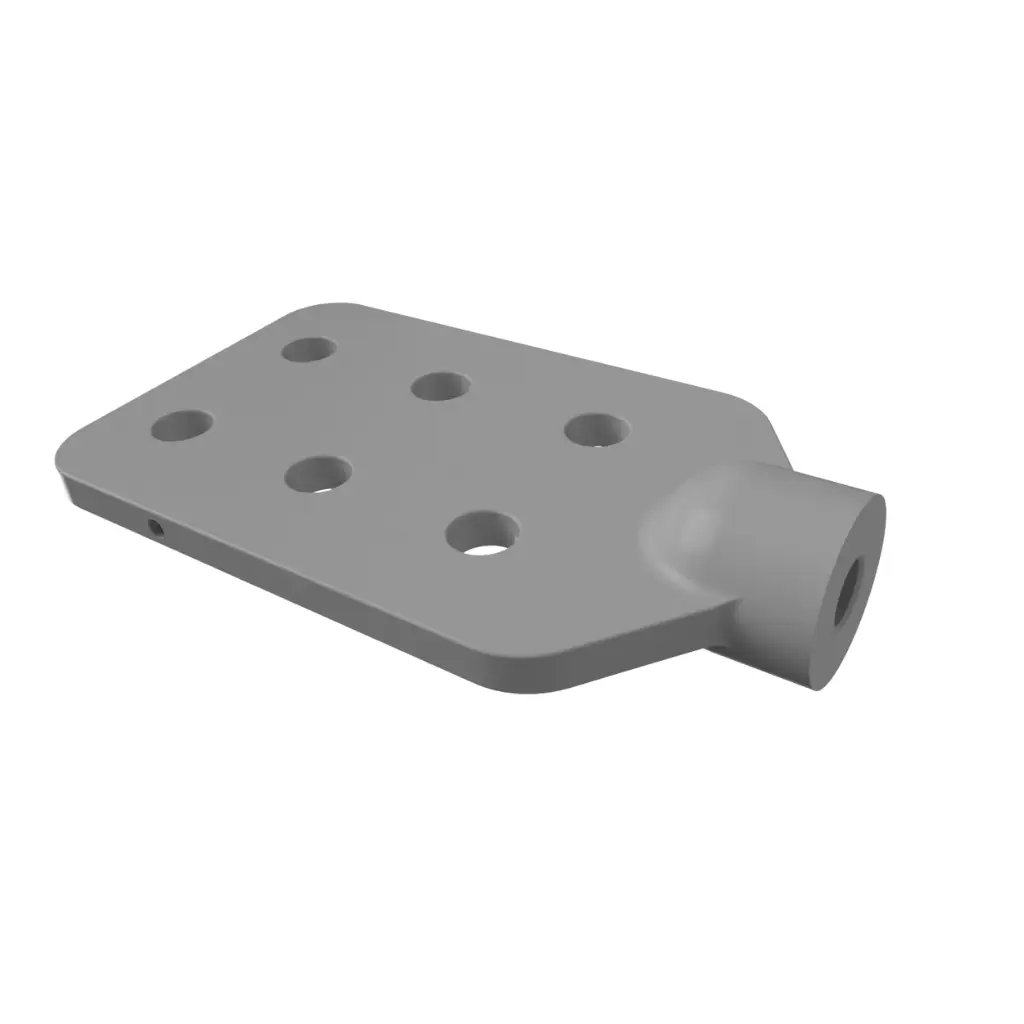

6 Hole Spade: 2A096101P01

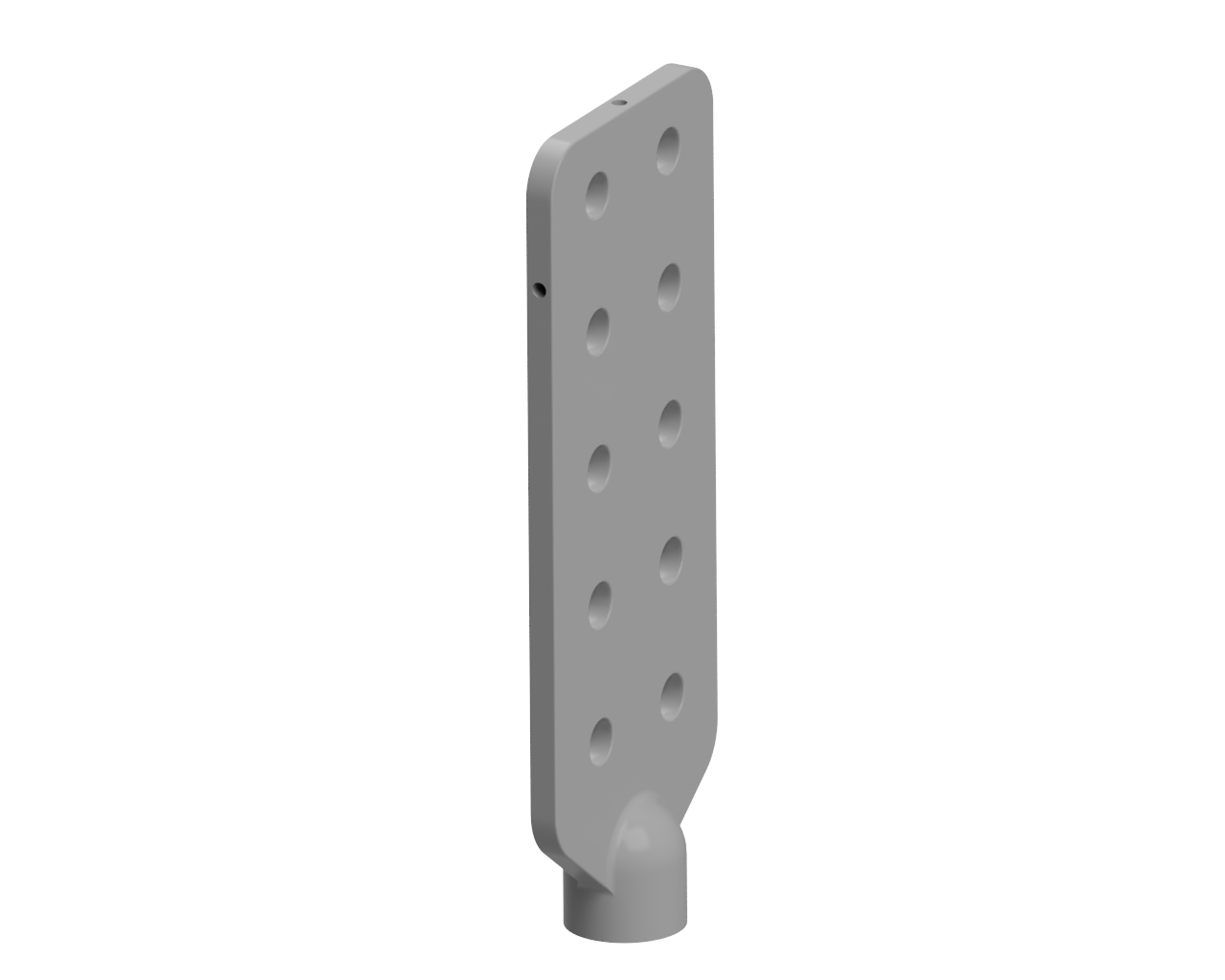

10 Hole Spade: 2A096102P01

8 Hole Spade: 2A096104P01

10 Hole Spade: 2A096102P01

High Voltage Bushing Well 25kV Class Catalog

Straight Connector

Straight Connector

ECI manufactures a SURE MAKE separable connector 200-amp, 35 kV Class 3 Phase Rated Loadbreak Integrated Bushing that meets all requirements of ANSI/IEEE Standard 386 – Separable Insulated Connector Systems.

The bushing combines the advantages of reliable one-piece design with the operating features required for underground distribution switching. The bushing is designed for padmount transformers, switchgear, and other apparatus filled with transformer oil.

Z-Bar Connector

Zbar Connector

  • Optimized Design: Engineered to reduce cantilever stress, effectively doubling cable
    capacity.
  • Simplified Installation: All screws are positioned on top for quick and easy assembly.
  • User-Friendly Tools: A single 5⁄16″ hex wrench handles all operations, including
    installation of the street light outlet.
  • Flexible Fit: Compatible with 5⁄8″ and 1″ studs for diverse applications.
