Expulsion Fuses
Transformers Components manufactures a complete product range of expulsion fuses for use in oil-filled distribution transformers.
Transformers Components manufactures a complete product range of expulsion fuses for use in oil-filled distribution transformers.
ERMCO manufactures a complete product line of expulsion fuses for use in oil filled distribution transformers. Mounting options include installation inside the high voltage pole transformer bushing and installation using a terminal board.
ERMCO manufactures a complete product line of expulsion fuses for use in oil filled distribution transformers. Mounting options include installation inside the high voltage pole transformer bushing and installation using a terminal board.
Three types of fuse cartridge elements are available:
The Current “Fault” Sensing Fuse is sensitive to current only and offers protection to the primary circuit from transformer faults.
To avoid closing on a fault an Isolation Link or a current limiting fuse must be used in series with the Bayonet Fuse. The current limiting fuse is required when the available fault current exceeds the interrupting rating of the Bayonet Fuse.
Part Number Fuse Curve Amp Rating
9F54MFC040 C04 6
9F54MFC060 C06 10
9F54MFC080 C08 15
9F54MFC100 C10 25
9F54MFC120 C12 40
9F54MFC140 C14 65
9F54MFC160 C16 100
9F54MFC170 C17 140

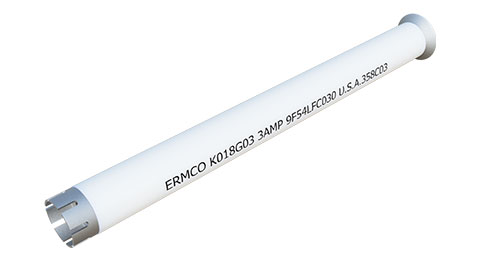

The Dual Sensing Fuse is sensitive to both current and oil temperature, thus providing both overload and primary circuit protection.
To avoid closing on a fault an Isolation Link or a current limiting fuse must be used in series with the Bayonet Fuse. The current limiting fuse is required when the available fault current exceeds the interrupting rating of the Bayonet Fuse.
Part Number Fuse Curve Amp Rating
9F54LFC030 C03 3
9F54LFC050 C05 8
9F54LFC080 C08 15
9F54LFC100 C10 25
9F54LFC120 C12 50
The Dual Element Fuse sensing the oil temperature, as well as extreme load currents, secondary faults, and transformer faults. The dual element fuse will reduce the heating time in a transformer caused by overloads and extreme temperature conditions.
To avoid closing on a fault an Isolation Link or a current limiting fuse must be used in series with the Bayonet Fuse. The current limiting fuse is required when the available fault current exceeds the interrupting rating of the Bayonet Fuse.
Part Number Fuse Curve Amp Rating
9F54DFC030 C03 5
9F54DFC040 C04 6
9F54DFC050 C05 8
9F54DFC060 C06 12
9F54DFC070 C07 15
9F54DFC090 C09 25
9F54DFC110 C11 40
9F54DFC120 C12 50
9F54DFC140 C14 65
